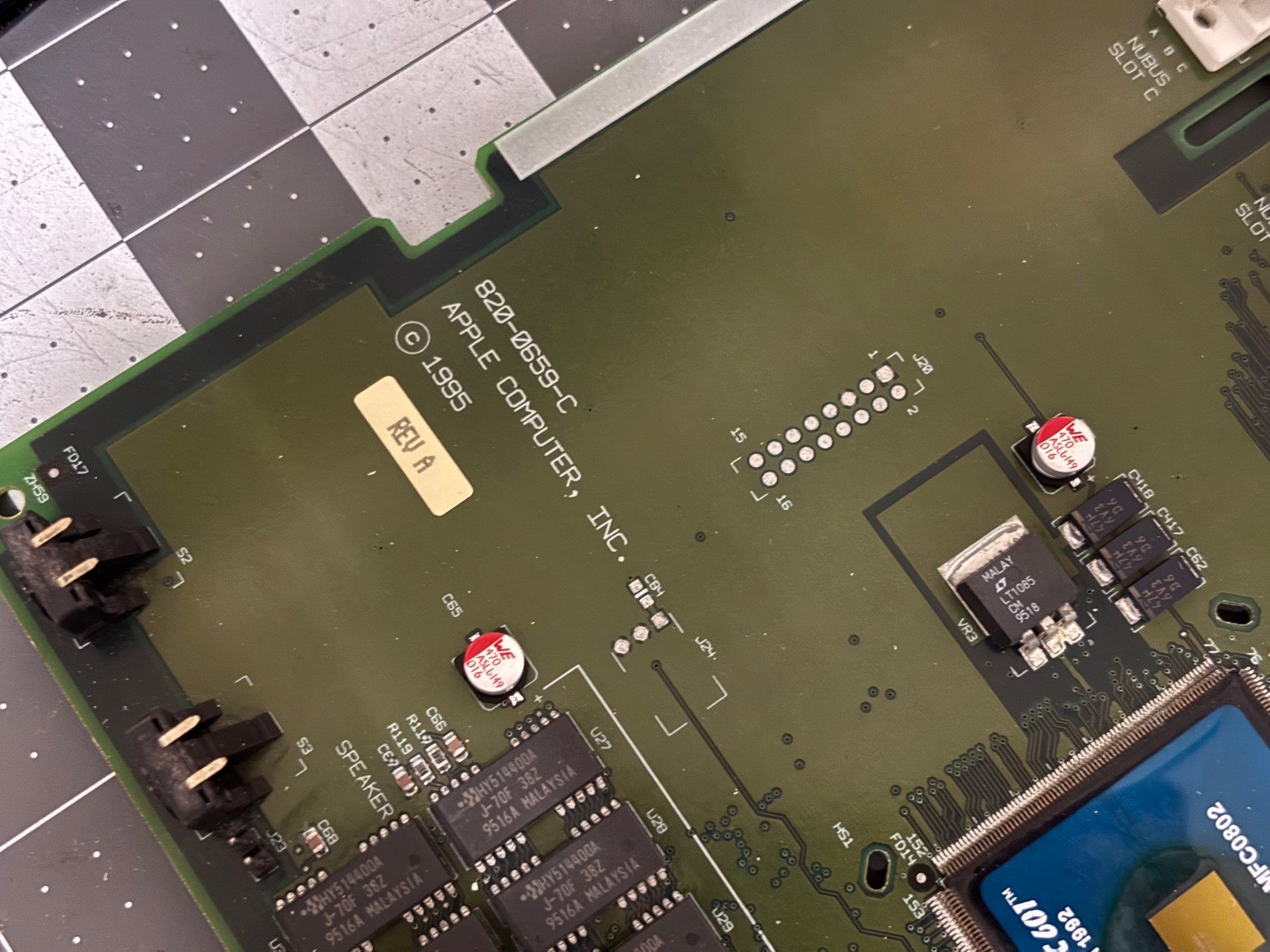

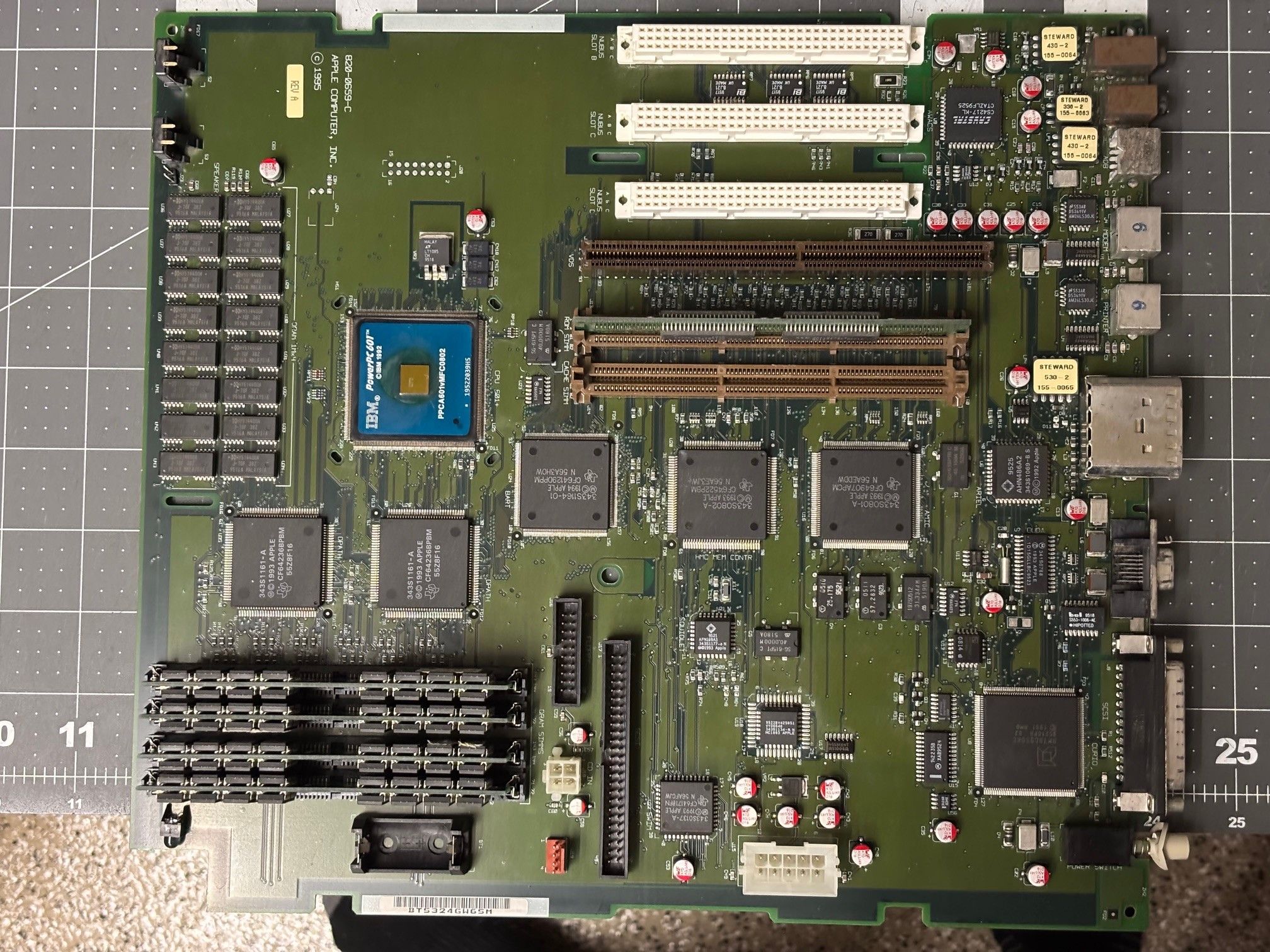

Garrett Tinkerer Oct 31, 2021 173 159 43 South Carolina Jul 22, 2025 #1 I've never seen a photo of this revision logic board online, so I'm posting it here for documentation's sake. One obvious difference between this and the more common board is the lack of a 100uF 6V cap near the CPU. Attachments A.jpg 666.2 KB · Views: 242 B.jpg 418.7 KB · Views: 208 Reactions: Kai Robinson
