I know you can daisy chain 3.5" floppy drives on your mac, but how many can be chained? I vaguely remember someone back in the day having more than 2 + internal on a plus, but I cant be sure. My googling isn't coming up with any answers.
How many 3.5" Floppy drives can you daisy chain?
- Thread starter eric
- Start date
Solution
Really? I always thought you could not daisy chain floppy drives on a Mac, each had to have its own port (unlike say the the Apple IIgs). Somewhere I recall reading the SE could support the most floppy drives, two internal and one external.
correct. Mac floppies you can't chain. Apple ][ floppy drives you CAN chain.
However, you can chain HD20's together and you can put a floppy drive at the end of a HD20 chain.
more about floppy chains in context of floppy emu
However, you can chain HD20's together and you can put a floppy drive at the end of a HD20 chain.
more about floppy chains in context of floppy emu
Yeah, only the later //c, IIc+, and IIgs can daisychain floppy drives, since they have the smartport setup. ][, ][+, and //e can have two drives off each controller card, if OEM Apple cards are used.
The Macs need to have each floppy drive connected to its own port, kinda like a disk ][ controller card.
-J
The Macs need to have each floppy drive connected to its own port, kinda like a disk ][ controller card.
-J
"In addition an external floppy disk drive may also be connected, making the SE the only Macintosh besides the Macintosh Portable which could support three floppy drives"
Source: https://en.wikipedia.org/wiki/Macintosh_SE
So the Macintosh SE and Macintosh Portable are the only Macs that support more than two floppy drives.
Source: https://en.wikipedia.org/wiki/Macintosh_SE
So the Macintosh SE and Macintosh Portable are the only Macs that support more than two floppy drives.

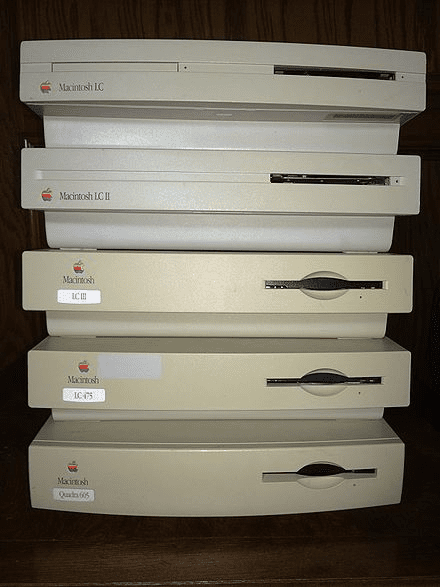

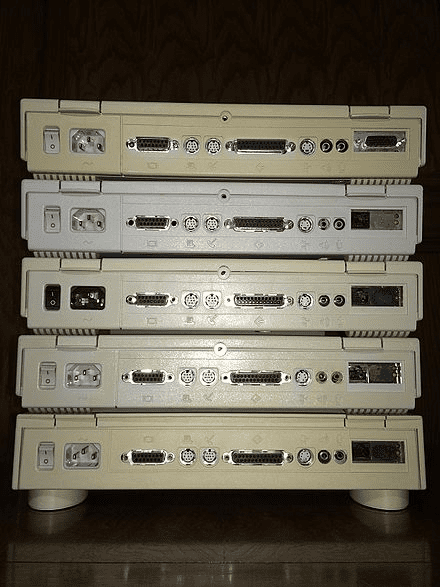

It does not. The DB connectors it has is for SCSI and the monitor
Source: https://www.wikiwand.com/en/Macintosh_LC_family
