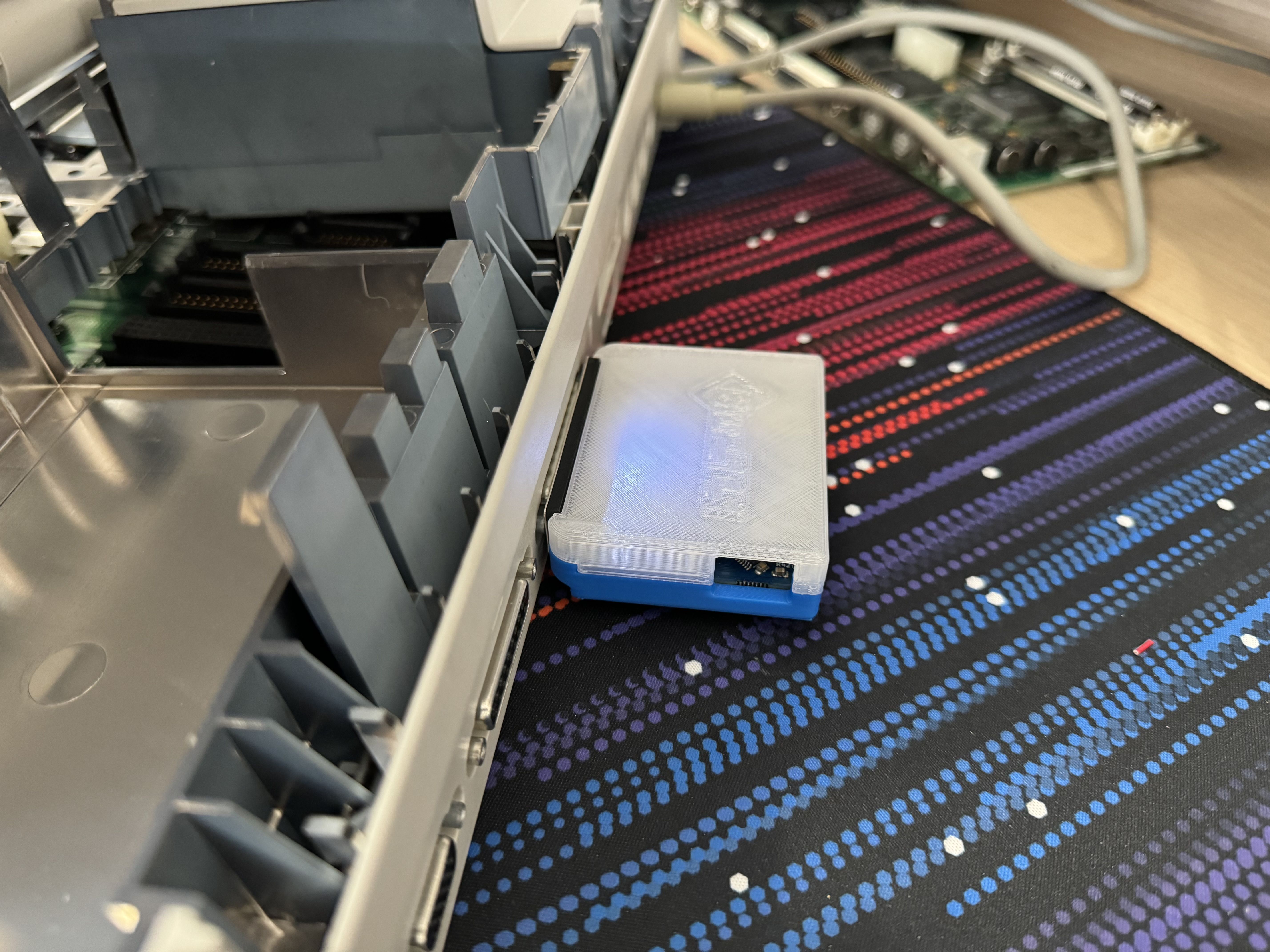

S SharedCow New Tinkerer Nov 9, 2023 5 6 3 Dec 25, 2023 #1 Added 5v to the termination power pin. Even managed to put the diode in the right orientation on the first try. Attachments IMG_1248.jpeg 2 MB · Views: 316 Reactions: pocketscience
Added 5v to the termination power pin. Even managed to put the diode in the right orientation on the first try.
pocketscience Tinkerer Apr 29, 2022 261 185 43 Sydney, Australia May 1, 2024 #2 Where did you tap the 5V from out of interest? Any pics of your mod?
S SharedCow New Tinkerer Nov 9, 2023 5 6 3 May 1, 2024 #3 I tapped the main regulator, near the power in. Q16 I think? Check all those for 5v. Sorry, I don’t have the machine anymore.
I tapped the main regulator, near the power in. Q16 I think? Check all those for 5v. Sorry, I don’t have the machine anymore.

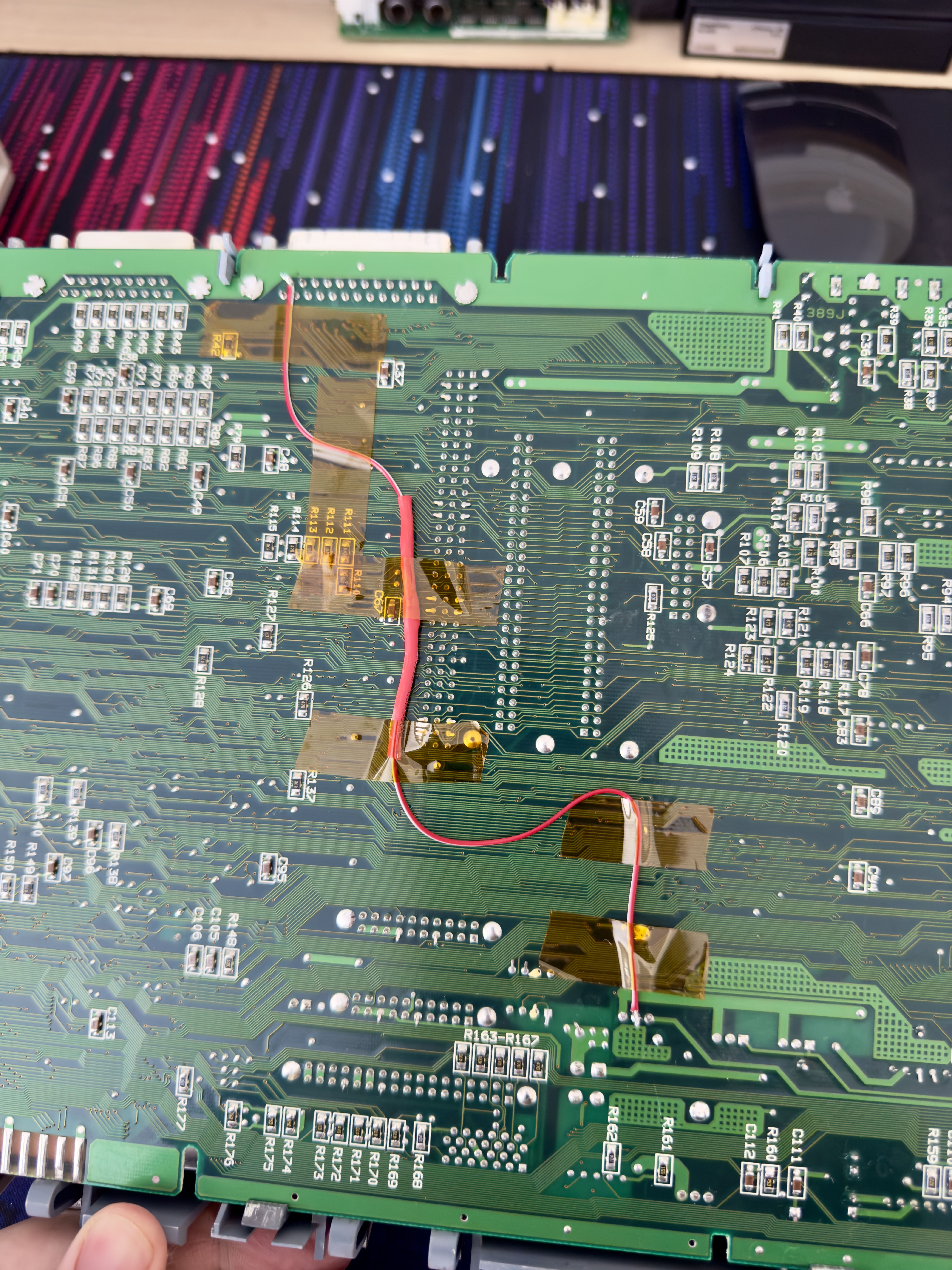

S SharedCow New Tinkerer Nov 9, 2023 5 6 3 May 1, 2024 #4 Hey look, I found a pic I took of it! There’s a diode inside the red heat shrink tubing. Reactions: pocketscience, Elemenoh and Androda
